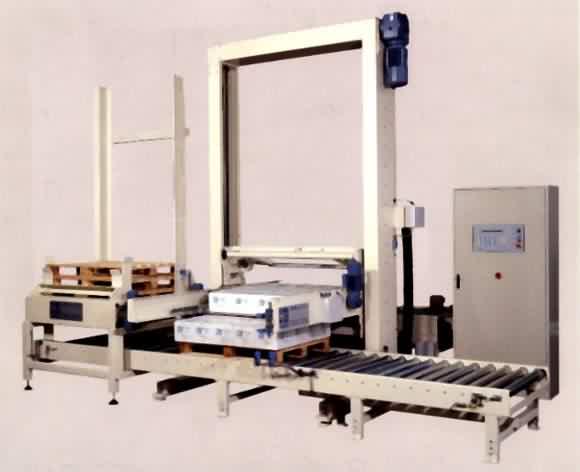

Automatic palletizer CK1500 is a very stable construction with 2 columns, conceived to palletize the paperboards, bags, racks, cases and other goods packed. In fact, the CK1500 is synonymous with minimum investment for a maximum quality. The installation and the adjustment are extremely simple. APOLLO is fully at your disposal to inform you about the many possibilities of the CK.1500 where other installations which are offered to you.
Technical data:
- Capacity: It depends on the product, its dimensions and the feeding system.
- Height of maximum stacking: Up to 2.200 mm
- Dimension of the pallets: 800 X 1.200 mm, (DIN 15146) 1.000 X 1.200 mm,
1.200 X 1.200 mm.
- Weight of the loading: roughly 200 kg per layer.
- Surface on the ground: 12m²
- Food Engine: 3 X 240/400 V, 50 Hz
- Food orders: 24 V
- Pressure of the air: 6 bar
- Completions:All colors RAL are possible
- Conform to the schedule of conditions the EEC
Additional/options:
- Side push rods to center the layer precisely.
- Other sizes of pallets
- Storage of the pallets with automatic conveyor.
- Conveyors with rollers or chains for transfer of the pallets charged.
- Special execution according to particular specifications
- Store and slot-machine of guides
|
