Drain big-bags

We propose a tight, practical and clean system to you, for the emptying of all types of big-bags. They can be made out of painted mild steel or stainless steel. This simple and rustic building machinery, ensures its users a long utilization period, even under the most difficult conditions.
In addition to the range of the standard equipment, several options can be built-in in the supply, according to the request of the user and according to the characteristics of the product to be treated.

With micro-batcher

With alveolar valve

• Cone vibrating support.
• System of tension of knows intern.
• Winnow guillotine for closing of cuff of emptying.
• Knife of cutting of the bond of the cuff of emptying of the big bag.
• Devices of side hammerings of the big bags for difficult products.
• Facility of partial emptying.
• Predetermination and control of the weight of the quantity of discharged product.
• Connection on power station of de-dusting.
• Range of conveyers, elevators and screw for the transport of all produced.

At the time of the draining of Big-Bag, it generally poses the following problems:

- Emission dust to the opening of the bag

- Difficult Extraction of the products due to the compressing generated by transport or storage

Additional manual operation to empty the bags of the product completely remaining in the angles.

To eliminate these disadvantages, we propose one to you system of modular and expansible unloading, accompanied by a whole range of accessories which make it possible to satisfy the specific requests. This system is effective, simple and economic.

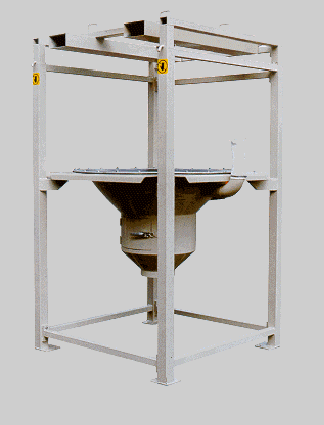

Initial version equipped with:

- Frame of fastener of Big-Bag

- Frame of support of adjustable Big-Bag in height

- Vibrating Fund 1.250 mms in diameter equipped with hatchway for the opening of the bag.
