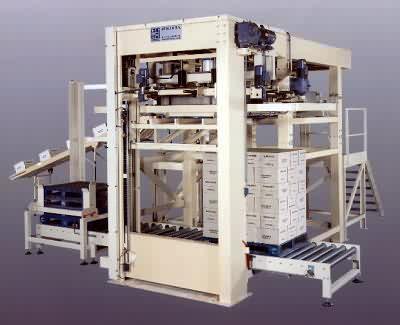

Le palettiseur APOLLO type CK.5000 peut fonctionner à très haute cadence, c'est aussi la machine la plus performante de la gamme des palettiseurs APOLLO. Sa construction robuste convient pour palettiser automatiquement des cartons, boites, barquettes, casiers, étuis, paquets de revues, journaux et autres emballages. Ce palettiseur est totalement commandé et contrôlé électriquement, aussi l'utilisation de l'air comprimé n'est pas nécessaire. APOLLO se tient à votre entière disposition pour vous renseigner sur les possibilités infinies du CK.5000 où d'autres installations qui s'offrent à vous.
Technical specifications :
- Capacity: to 500 layers per hour, according to the type of packing and its dimensions.
- Height of stacking: standard up to 2 200 m/m, other heights on request.
- Dimensions of pallet: 1 200 x 800 m/m (European), 1 200 x 1 000 m/m. (industrial).
- Charge maximum acceptable palletizable: approximately 350 kg per layer
- Energies necessary: 3 x 230/400 V, 50 Hz. type of controls: Programmed PLC, with man/machine conversational terminal.
- Plans of palletization: column-like, or overlapping, alternated layers with 180° with or without spaces and/or with or without chimneys between packing.
- Special dimensions: on request
- Particular solutions: on request
- Ergonomic protections: according to the safety requirements EC in force.
Options/accessoires:
- Feeding system appropriate to the type of product, its size and the capacity requested
- Possibilities quasi infinite to position packing.
- System of positioning " squaring system " simple or double, to place the layers in a very precise way on the pallet
- Marking of packing.
- Semi-automatic or automatic Banderoleuse peripheral with or without
" signal sheet " (tight)
- Store with distributor of guides integrated
- Handling systems of the pallets: revolving table, conveyors with rollers, with chains, references orthogonal and carriages of transfer on rails or guided by wire or laser.
- Windings for shrinkable film or ductile.
- Stacker of pallets charged on two levels.
- Specific safety devices EC.
- Special dimensions: on request
- Particular solutions: on request
|
